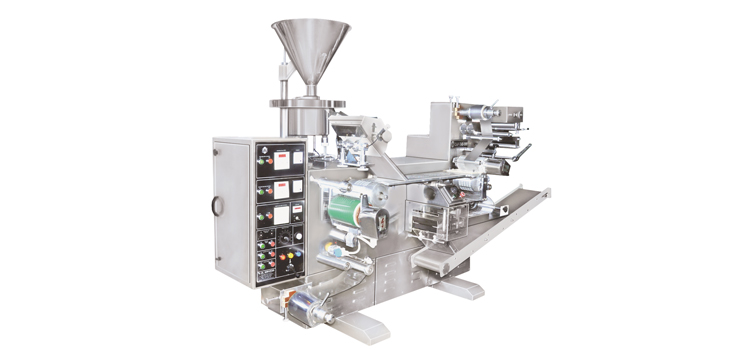

CAP-TAB-240 (Double Track)

Salient Features

  • Fully automatic, high-speed system with continuous operation cycle mechanism for efficient packing. .
  • Fully automatic tablet feeding unit with photo level control and controlled vibrator.
  • A comparatively lengthy “Guide Track” for rigid inspection for missing fillings, if any.
  • Crease proof sealing pattern to eliminate capillary formation of foil on sealing and knurling efficiency saves products from hygroscopic effects and ensures convenient passage through leak tests.
  • Contact heating system with pneumatic actuation allows blister forming with even heating and save wastage of PVC after every stoppage.
  • Universal type chain driven batch printing unit.
  • Adaptable to change parts of other machines of similar design.
  • Specially designed ergonomic and aesthetic partially electronic control panel board protects electrical operational components..
  • Suitably designed framework and usage of high quality bought out components from trusted names make the operational system perfect.
  • A fully automatic integrated system will high precession mechanism for efficient blister packing, versatility of this equipment suits your total packaging needs.

Packagable Products

  • Tablets, Drugs, Hard / Soft Gelatin Capsules, Any Similar product of 12 mm (Cavity Depth), 110 mm (Length) and 25 mm (Width).

Packaging Material

1) Base Film

  • Opaque, Transparent or colored thermo formable and non-toxic PVC, PVC with PVDC coating, PVC with PE/PVDC, ACLAR.

2) Material

  • Aluminum (Hard) with Heat-Sealed lacquer or PVDC Coating & Child Resistance Type (Al-Al OR Al-Paper)

3) Operational Facilities (Available On Prior Intimation)

  • In-Line Scoring Unit For Dispersing of Blister into Twos
  • Thermoforming of Manufacturer’s / Product’s Name
  • Printing Registration Control System ( P.R.C).
  • Multi Product Packing Facility
  • Injectable Packing Facility
  • P.L.C. based operational system.

4) Necessary Equipment

For efficient functioning of this system we recommend the installation of

  • A 5Hp Air Compressor of 200 liters air tank with a minimum pressure of 120 Lbs./8 Kg (at par with Ingersoll–Rand IR–242 air compressor)..
  • A Water Chiller of 180 liters per hour capacity with a temperature drop of 170C.
  • Any Suitable Equipment to maintain the Ambient Temperature of Working Environment Between 180C to 220C.

Output

  • Strokes per minimum (max) - 150 Strokes (Sizes and No. of packs depend on selection of change parts).

Power Requirement

  • 8 kw (415V, 3 Phase, 50HZ, AC Electric Supply if different please specify voltage required.

Dimension

  • L X B X H = 3020 X865 X 1872mm.

Technical Specification

Description Range CAP-TAB-240
PVC Base Film
Max Width 208mm
Thickness 0.25 to 0.35mm
Max Reel Dia 440mm
Aluminium Foil
Max Width 204mm
Thickness 0.025 to 0.035mm
Max Reel Dia 210mm
Forming Area
Minimum 200 x 15mm
Maximum 200 x 132mm
Pack Length Maximum 200mm
Pack Width Maximum 140mm
Forming Depth (Can be extended up to 19mm) - 12mm
